LED Brake & Headlight Kits
Our RC LED light solutions use the latest technology

Each unit combines a plethora of features not found in any other kit:

  • Brightest white LED headlamps available (over 5000 mcd each LED).
  • Optional wide-angle blue or white running lamps available (other colors also).
  • Wide-angle hyperbright red braking LEDs.
  • Dual-intensity brake lights actually work with your brake servo, just like an actual car.
  • Built-in failsafe - unit automatically applies brakes to your car when transmitter signal is lost.
  • Selectable failsafe override timer. Brakes can be applied right away or 1 sec after signal loss.
  • No extra battery needed. Unit runs off 4.8-6V receiver battery.
  • Signals are opto-isolated from your receiver - offers MAXIMUM interference protection.
  • Headlamps extinguish when transmitter signal lost.
  • Unit works inline with your nitro throttle/brake servo or electronic speed control - no clumsy mechanical switches needed!
  • Programmable brake threshold - sets up with any transmitter/receiver pair.
  • Can be used with nitro or electric cars (1/12 to 1/4 scale with existing receiver).

Kit Details
Kit comes with: Light board with (1) male and (1) female servo connector and 14-pin gold header, 14-pin 36" ribbon cable to hook up LEDs, headlamp, foglamp, and brake LEDs.
Optional accessories: LED reflectors, special servo harnesses.

Kit Specifications
Voltage: 4.8-6V (uses common receiver battery)
Current: 80-120 mA with LEDs active. <5 mA with no LEDs
LEDs: 7000 mcd white 5mm headlights, 1000 mcd super-wide angle 5mm blue fog lamps, 1500 mcd super-wide angle 5mm brake lights. (NOTE: 1000 mcd=1 candlepower)
Failsafe: Automatic throttle failsafe watchdog. Selectable 1 sec or 250 ms braking delay upon loss of transmitter signal.
Powers up to 9 LEDs!
Dual-intensity brake lamps (dim when no brakes, bright when brakes applied)
Programmable braking threshold for brake lamps and failsafe braking level.
Receiver servo signal is opto-isolated from LED board for maximum protection.
No extra crystal or oscillator is used - minimizes RF interference.

RC Headlight and Dual-intensity Brake Lights with Built-in Failsafe (for nitro or electric cars)

Kit Pricing
Kit version: (LEDs need to be attached/soldered to ribbon cable)*
Model WBR:
2 white headlights, 2 blue fog lamps, 2 red brake lights - $69.00 + shipping
Temporarily out of Stock
Model WWR:
2 white headlights, 2 white fog lamps, 2 red brake lights - $69.00 + shipping
Temporarily out of Stock
Model WR:
2 white headlights, 2 red brake lights - $59.00 + shipping
Temporarily out of Stock

Fully-assembled versions: (no soldering required)**
Model WBRA:
2 white headlights, 2 blue fog lamps, 2 red brake lights - $89.00 + shipping
Temporarily out of Stock
Model WWRA:
2 white headlights, 2 white fog lamps, 2 red brake lights - $89.00 + shipping
Temporarily out of Stock
Model WRA:
2 white headlights, 2 red brake lights - $79.00 + shipping
Temporarily out of Stock

* Kit comes with assembled board.  User has to solder/attach all LEDs to the included ribbon cable and install into car body.  Cable length is 36".
** Kit comes with assembled board and LEDs attached to ribbon cable.  User has to install board into car body.  Cable length is cut down to 24".

Servo cables are available with Futaba J or Hitec/JR connectors.  Please note which version you want with your order.  Hitec/JR connectors are automatically shipped if not specified.

We also accept money orders or checks.  Please visit here for more details.

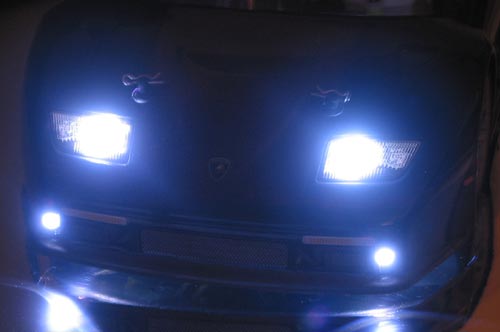

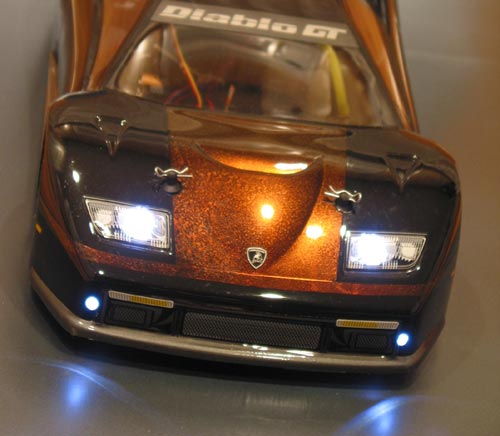

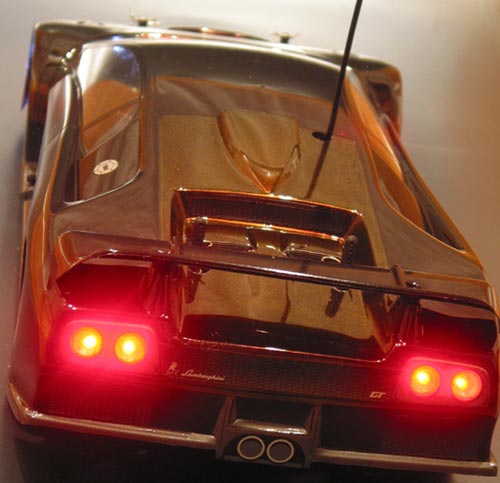

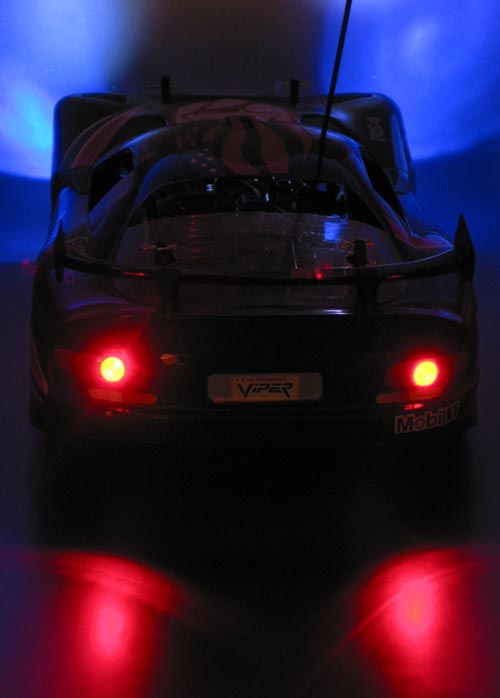

Click images to enlarge
Movies of RC Light Kits in Action
RC Lights (Daytime)
RC Lights (Dusk)
RC Lights (Night)
